| Component |
Specifications |
BP-51 |
BP-52 |
BP-52P |
| Viewing head |
Monocular head,45Oinclined,360Orotating |
●
○ |
○
● |
●
○ |
| Eyepiece |
WF10X-18mm
WF16X-13mm
WF20X-11mm |
●
○
○ |
●
○
○ |
●
○
○ |
DIN 45mm
Achromatic objective |
DIN achromatic objective 4X/NA0.10
DIN achromatic objective 10X/NA0.25
DIN achromatic objective 40XR/NA0.65
DIN achromatic objective 60XR/NA0.85
DIN achromatic objective 100XR(oil)/NA1.25 |
●
●
●
○
○ |
●
●
●
○
● |
●
●
●
○
○ |
| Nosepiece |
Triple nosepiece with positive click stopper
Quadruple nosepiece with positive click stopper |
●
○ |
○
● |
●
○ |
| Analyzer |
built-in analyser group |
○ |
○ |
● |
| Stage |
Metal stage 127mmX132mm with paired clips
Built-in mechanical stage 125mmX130mm with specimen holder,controlled by coaxial knobs at low position
Diameter  135mm360ORot table and Graduated in 1OIncrements, Minimum Resolution6’ when Using Venire Scale, Center Adjustable |
●
○
○ |
○
●
○ |
○
○
● |
| Condenser |
single Condenser with Iris Diaphragm
N.A.1.25Abbe Condenser with Iris Diaphragm
N1.25Abbe Condenser
With polarize ,can rotate,take the scale |
●
○
○ |
○
●
○ |
○
○
● |
| Focusing system |
Separate fine & coarse focusing with safe rack stopper
Coaxial fine & coarse focusing, with safe rack stopper |
●
○ |
○
● |
○
● |
| Illuminator |
LED lamps, Ni-Cd rechargeable battery pack,an AC/DC adaptor. The brightness is adjustable
Halogen bulb 6V/20W.AC85-230V |
●
○
○ |
●
○
○ |
○
○
● |
| Option |
Movable specimen holder
photo set |
○
○ |
○
○ |
○
○ |
| Packing |
Each set in a foam in an inner carton,2 inner cartons in a master carton. Master carton size:42X35X43 cm
Wooden case w/lock & keys
Aluminium-alloy Enstrument Case |
●
○
○ |
●
○
○ |
●
○
○ |

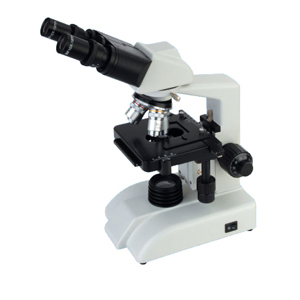

Biological Microscope
